Lane Detection System

The Lane Detection System uses our proprietary vision and laser based system to find road markings including:

• Lane markers
• Stop lines and crosswalks
• Road labels like speed limits, "SIGNAL AHEAD", "BUMP", etc.

The Lane Detection System can extract:

• Lane marker color
• Lane marker type (solid or broken)
• Lane widths
• Vehicle position within travel lane
• Curvature of lane or upcoming turns up to 300 feet in front of the vehicle

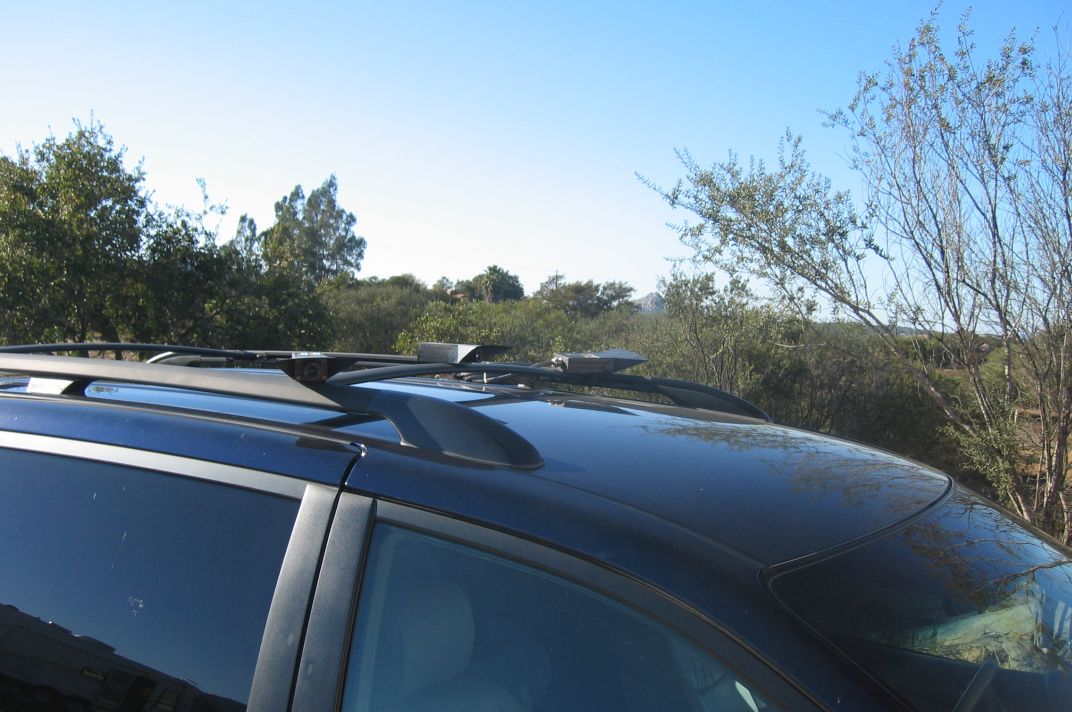

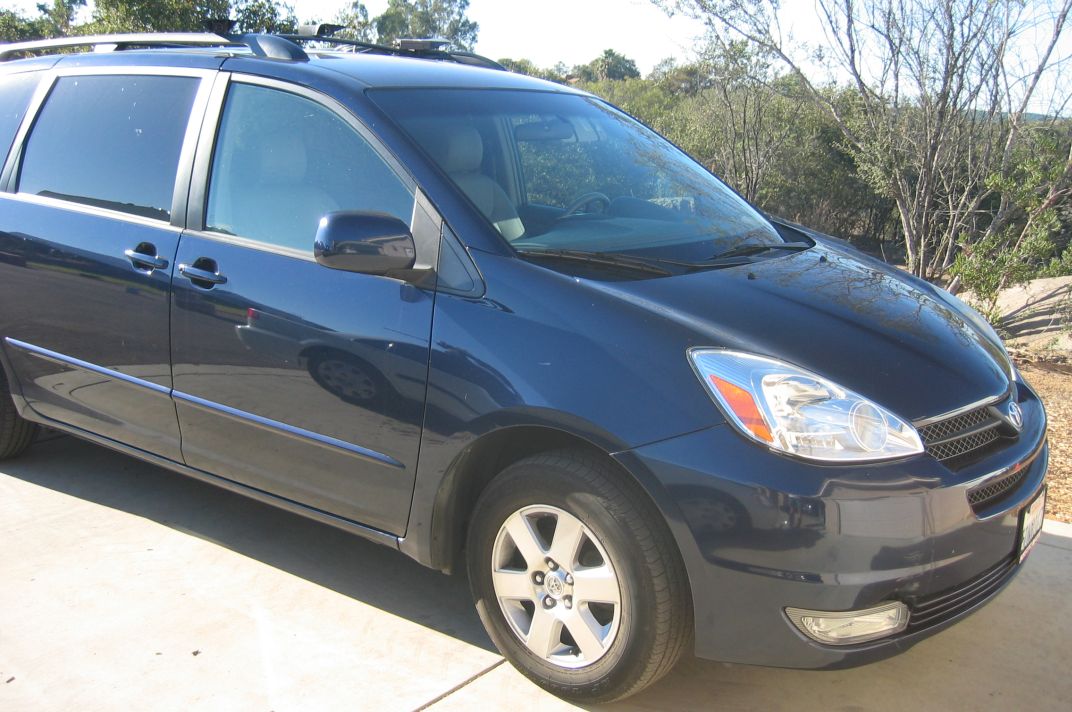

Typical Lane Detection System Installation on a 2004 Toyota Sienna.

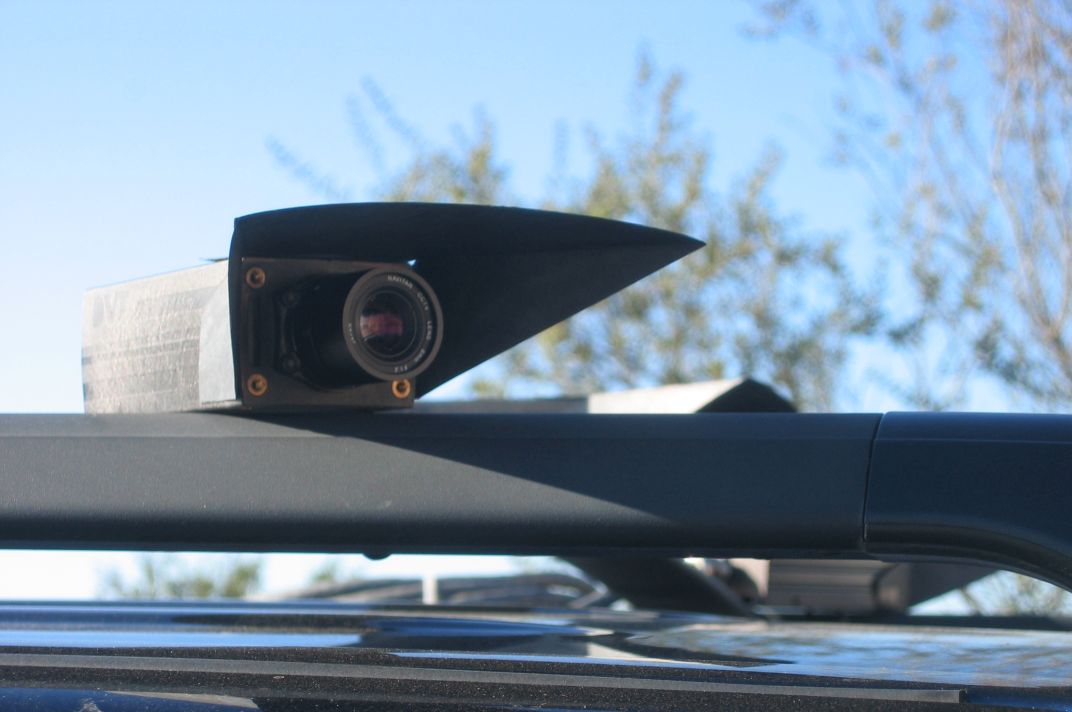

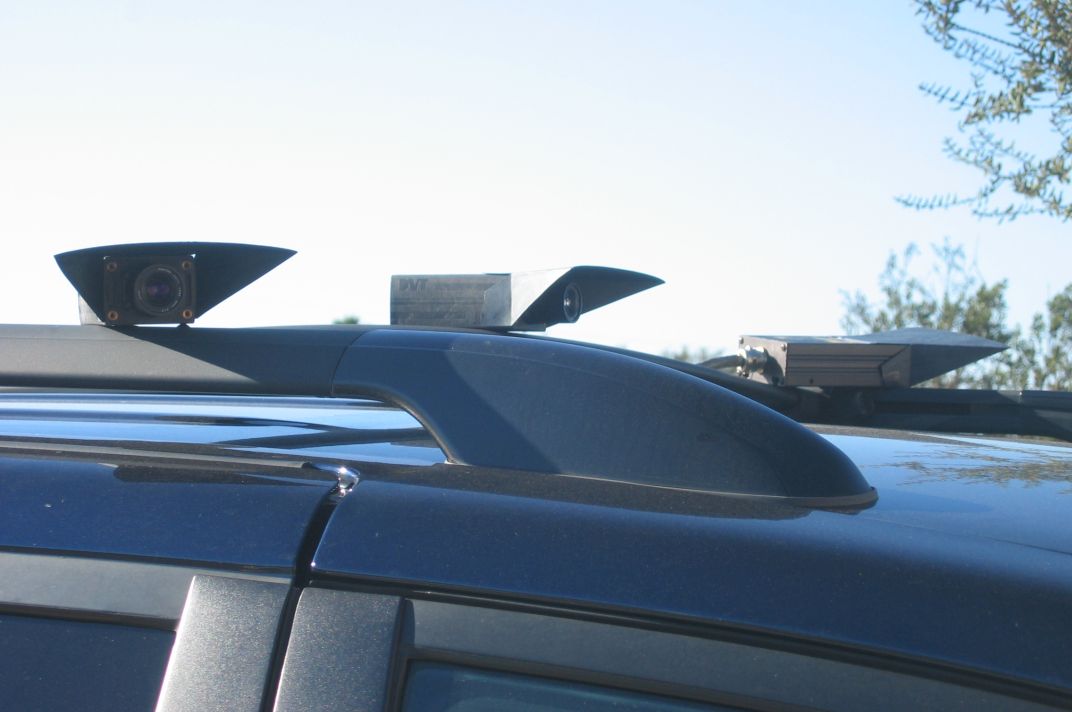

This three sensor arrangement shows 180 degree field of view.

Key Features

• Works in a wide variety of lighting conditions (bright sun, shade, broken shadows, dusk & low light conditions, with or without traffic)
• System can be used to give a warning (visual or audible) if the driver is departing the current lane of travel and vehicle turn signal is not activated
• Can be integrated with vehicle automation system to automatically keep vehicle within current travel lane
• Windows based GUI provides visual confirmation of road markings, either in vision coordinate system or earth based coordinate system

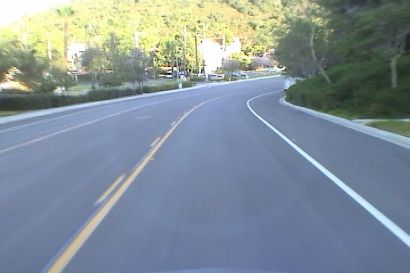

Road image and the corresponding lane markings determined by the Lane Detection System

Sample Lane Detection System Results

Customization

• Our baseline Lane Detection System is capable of providing indications of lane markings in 60 degree sectors with a range of up to 300 feet.
• AutoCommute understands that one size doesn't fit all.  That's why we can provide a customized system tailored to your application.  Whether it's 360 degree coverage, or longer range through an actuated system, feel free to contact us to find how we can meet your needs.

System Specification

• Range: 300 feet with 60 degree coverage
• Update range: Up to 20 Hz (depends on lightning & processing requirements)
• Data interface: Ethernet
• Power: 24VDC, <10W per sensor
• Operating Temperature: 50C maximum

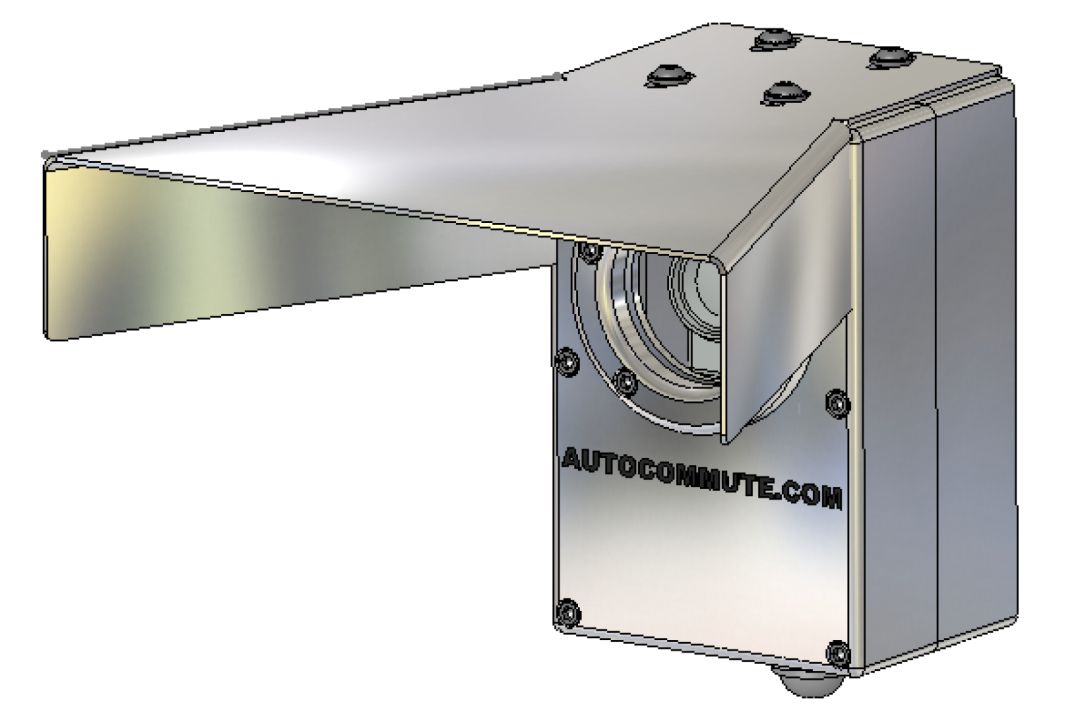

New high speed Lane Detection System sensor in weatherproof housing.
